| Model |
TUF GAMING B850M-PLUS II |
| CPU |
AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset |
AMD B850 |
| Memory |
4 × DIMM, max 256GB DDR5, up to 8000+ MT/s (OC), ECC & Non-ECC, Dual channel, EXPO™, AEMP |
| Graphics |
1 × DisplayPort 1.4 (up to 8K@30Hz), 1 × HDMI 2.1 (up to 4K@60Hz) |
| Expansion Slots |
Ryzen 9000/7000: 1 × PCIe 5.0 x16
Ryzen 8000: 1 × PCIe 4.0 x16 (x8/x4)
Chipset: 1 × PCIe 4.0 x1 |
| Storage |
3 × M.2 (Ryzen 9000: PCIe 5.0/4.0, Ryzen 8000: PCIe 4.0), 4 × SATA 6Gb/s |
| RAID Support |
Ryzen 9000: RAID 0/1/5/10
Ryzen 8000: RAID 0/1
Ryzen 7000: RAID 0/1/10 |
| Ethernet |
Realtek 2.5Gb Ethernet, TUF LANGuard |
| USB (Rear) |
1 × USB-C 20Gbps, 3 × USB-A 10Gbps, 4 × USB-A 5Gbps, 4 × USB-A 2.0 |
| USB (Front) |
1 × USB-C 10Gbps, 2 × USB 5Gbps (via header), 4 × USB 2.0 (via headers) |
| Audio |
Realtek ALC1220P 7.1 HD Audio CODEC, 120 dB SNR playback, 113 dB SNR recording, 32-bit/192kHz playback |
| Audio Features |
Audio shielding, premium capacitors, dedicated PCB layers, de-pop circuit, audio cover |

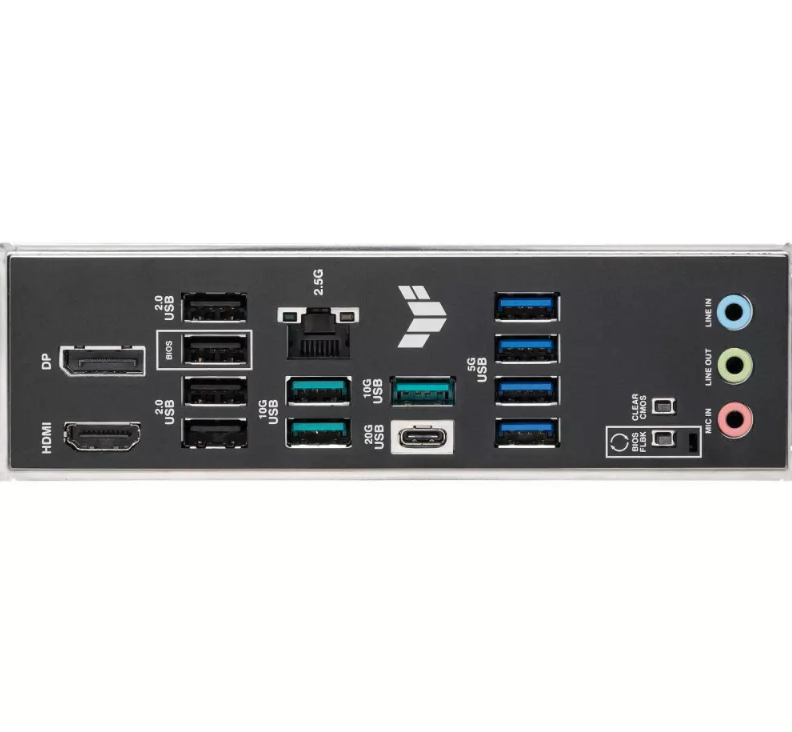

| Back Panel I/O |
1 × USB-C 20Gbps, 3 × USB-A 10Gbps, 4 × USB-A 5Gbps, 4 × USB-A 2.0, 1 × DP, 1 × HDMI, 1 × 2.5Gb LAN, 3 × Audio jacks, BIOS FlashBack™, Clear CMOS |
| Internal I/O |
1 × CPU Fan, 1 × CPU OPT, 1 × AIO Pump, 3 × Chassis Fan
1 × 24-pin ATX, 2 × 8-pin CPU power3 × M.2, 4 × SATA 6Gb/s1 × USB-C 10Gbps, 2 × USB 5Gbps, 4 × USB 2.03 × ARGB Gen2 headers, COM, Intrusion, F_AUDIO, FP header |
| Special Features |
ASUS TUF Protection (DIGI+ VRM, ESD Guards, LANGuard, SafeSlot, Stainless-steel I/O)
Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-LED)
Thermal solution (M.2 & VRM heatsinks)
EZ DIY (BIOS FlashBack™, Pre-mounted I/O, SafeDIMM)
Aura Sync (ARGB Gen2 headers) |
| Software Features |
Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, AI Advisor, DriverHub, TurboV Core, DTS Audio Processing, Adobe CC Trial, Norton 360 Trial, WinRAR Trial |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Accessories |
2 × SATA cables, TUF Gaming sticker, M.2 rubber, M.2 screws, Quick start guide |
| Operating System |
Windows 11, Windows 10 64-bit |
| Form Factor |
micro-ATX, 9.6″ × 9.6″ (24.4 × 24.4 cm) |
