EVION PRO
22kW AC three-phase, wall mounted/pole mounted EV Charger For All Ev cars
APP
Type 2 single charging gun
RFID , Bluetooth/ Wi-Fi, Ethernet, 4G
IP65 Protection and Temperature resistant (-25 C- +50 C)
CE, IK10, ROHS certified
02 Year Warranty
The EVION PRO is a high-performance 22kW AC three-phase EV charger designed for UAE homes, offices, and commercial locations. Featuring a Type 2 charging gun and flexible wall or pole mounting, it delivers fast, efficient charging suited to the UAE’s growing EV infrastructure. Built with IP65 and IK10 protection, it operates reliably even in harsh Gulf weather, from –25°C to +50°C. With smart features like RFID, Bluetooth/Wi-Fi, Ethernet, 4G, and OCPP 1.6 support, it offers seamless control, compatibility with all major EVs in the UAE, and a safe, dependable charging experience.
FEATURES
High efficiency
High-power DC output, fill your car up quickly, make your trip more smooth.
Up to 98% power factor, up to 95% charging efficiency, reduce energy waste, economic and environmental protection.
Excellent adaptability
Strong adaptability to application environment: it can be installed outdoors or indoors.
Optional installation mode: wall mounting or column mounting.
High car charging compatibility: 150-1000V voltage output of different levels, to meet the needs of different types of vehicles.
Intelligent control
Equipped with international general OCPP-1.6 communication protocol, can be connected to the user’s background management platform.

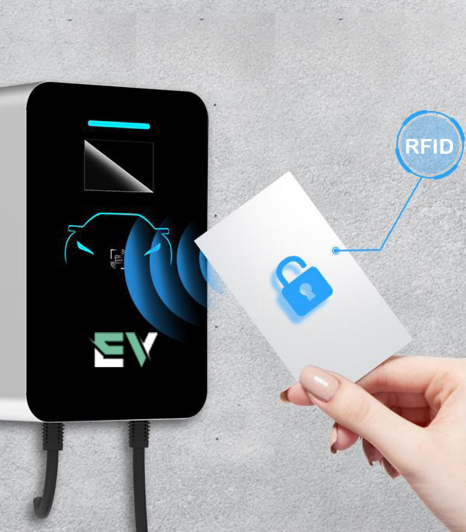

Can charge by RFID swipe card, calculate charging fees for users to provide commercial functions.
Touch screen control, convenient for maintenance personnel.
Bluetooth/WIFI/Ethernet/4G a variety of communication methods available for selection.
All-round security protection
Provide users with safe charging experience we have voltage, current, temperature, grounding, lighting, leakage protection and other electrical protection to ensure the normal use of users.
The product reached the IK10 protection level, and passes the strict safety test before leaving the factory to ensure the safety performance of each product.
FUL SPECIFICATIONS
Evion PRO
Product Type 22kW wallbox AC EV charger
Special feature App for real time charge monitoring /
OCPP protocol for billing

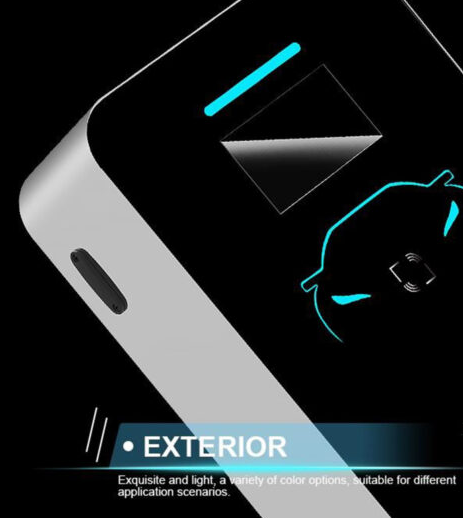

Chassis Material Tempered glass panel + aluminum alloy frame
Protection Rating IP65
Monitoring Screen 4.3” LED Screen
Communication Bluetooth, WiFi, RFID, App/ OCPP
(Optional)
Gun type Single gun- Type 2
Plug Type Single phase Blue CEE Plug
Cable Length 5m (customizable for bulk orders)
TECHNICAL SPECIFICATION SHEET

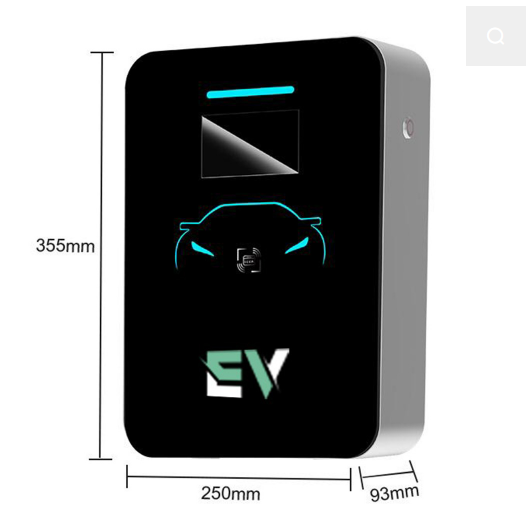

Product Dimension 355*250*93mm
Input Parameters Input Voltage AC380V(L1,L2,L3+N+PE)
Input Frequency 50Hz
Output parameters output voltage AC380V(L1,L2,L3+N+PE)
output power 22kW
Output current 32A
Environmental parameters
Temperature -25 C- 50 C
Humidity 0-95% HR
Altitude ＜2000m
Atmospheric Pressure 70~106kPa
Cooling way Natural cooling
RCD Type A+DC6mA
Charging mode RFID, sched
Model No Evion Pro #0581-893774-001
AD559911203E-SOL
