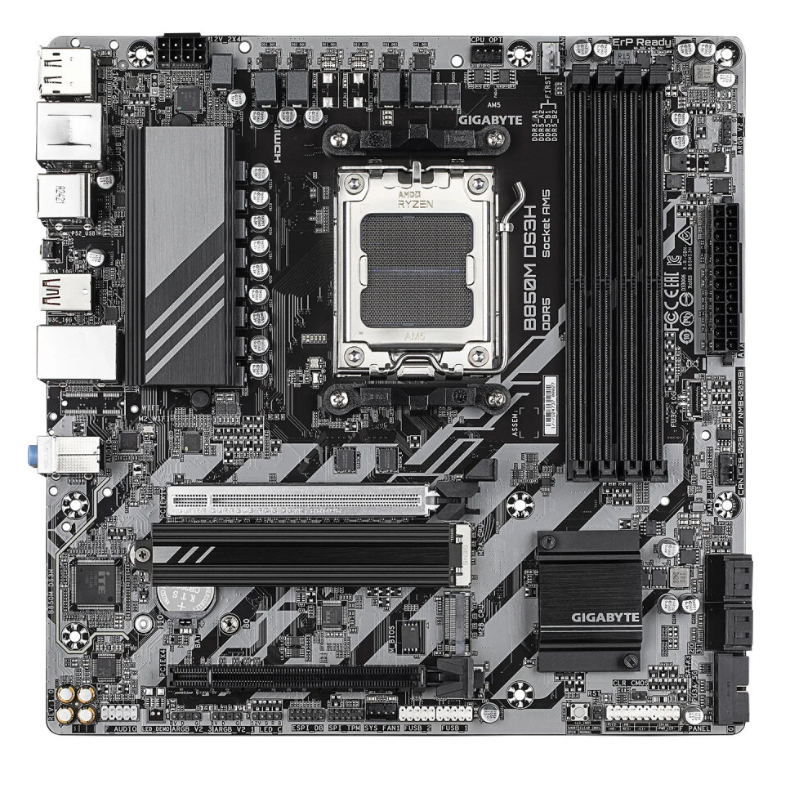

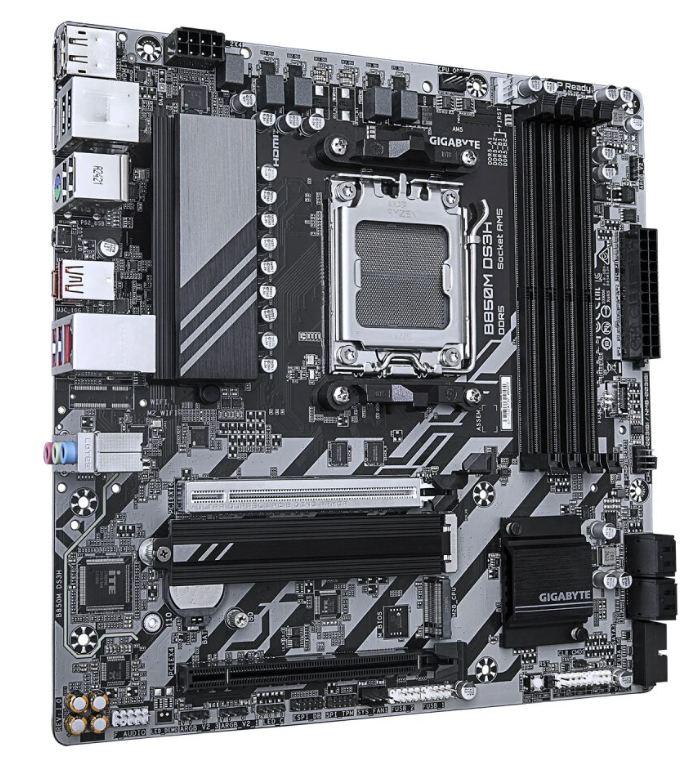

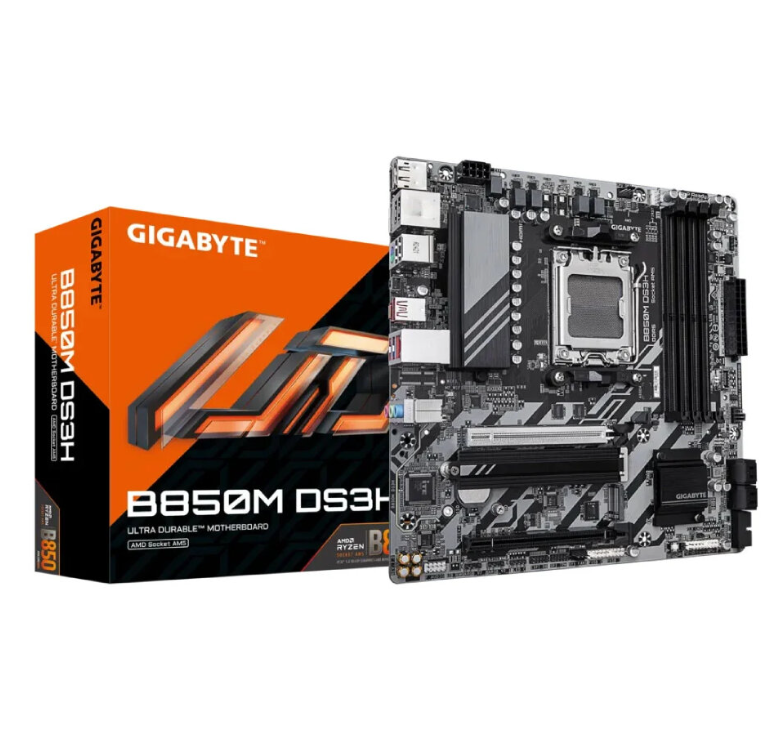

Gigabyte AMD B850M DS3H M-ATX AM5 DDR5 Motherboard - Black | B850M-DS3H
- Micro-ATX Form Factor
- AMD B850 Chipset
- AM5 Socket
- 4 x Dual-Channel DDR5 Slots
- PCIe 5.0 Slot Support
- 2.5 GbE LAN
- EZ-Latch
- Support for Windows 11 (64-Bit)
A Bulletproof Foundation
The Gigabyte B850M DSH3 is a small form factor motherboard, built to harness the power of the AMD Ryzen 9000 series processors. With the AMD B850 chipset at the heart of operations, this versatile Micro ATX motherboard is ideal for smaller builds in cases that still require rock-solid performance and wide compatibility with the very best components. This motherboard provides excellent connectivity (without the addition of a built-in Wi-Fi module) and robust thermal solutions, ensuring this board delivers the flexibility and reliability you need, with no compromises for choosing to build compact.
X3D Turbo Mode
Unleash New Era Gaming Performance with One-Click Activation.
X3D Turbo Mode's unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Infinite Memory Performance
GIGABYTE UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 5.0 / 4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 5.0 / 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0 / 4.0 devices to provide the superior performance.
EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.
SPECIFICATIONS
Edition GIGABYTE B850M DS3H
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B850
Memory Type DDR5
Memory Channel Dual (2)
ECC Support Non-ECC
Max. Memory Speed DDR5 - 8200 (OC)
Max. Capacity 256 GB
Audio 7.1 Channel HD Audio
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors DisplayPort 1.4, HDMI 2.1
Expansion Slots 1 x M.2 (22-80/110, PCIe Gen4x4)
1 x M.2 (22-80/110, PCIe Gen5x4)
1 x PCIe 3.0 x16 (x4 Bandwidth)
1 x PCIe 5.0 x16
4 x SATA 6Gb/s
SATA Support SATA3
RAID Support RAID 0, RAID 1, RAID 5, RAID 10
Internal I/O 1 x 24-pin (Power)
1 x 8-pin (Power)
3 x Addressable Gen 2 Header
1 x Clear CMOS Jumper
1 x CPU Fan Connector
1 x CPU Water Pump/Fan Connector
1 x Front Panel Audio Header
1 x Front Panel Connector
1 x Reset Button
1 x RGB (RGBW) LED Strip Header
1 x System Fan Header
1 x System Fan/Water Pump Header
1 x TPM Header
2 x USB 2.0 Header
1 x USB 3.2 Gen1 Header
1 x USB 3.2 Gen2 Header
Network Interface Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip Realtek 2.5GbE LAN

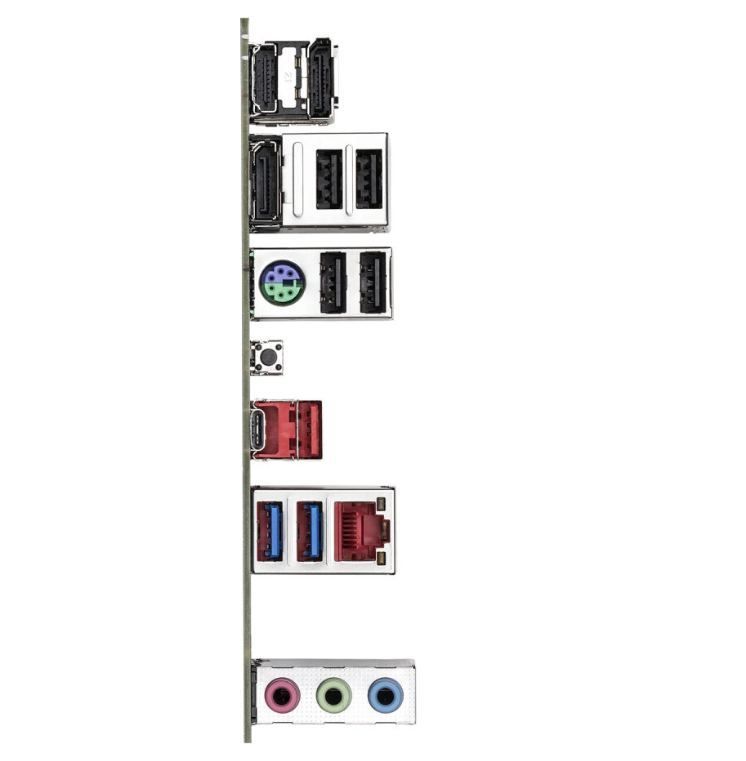

Rear I/O 3 x Audio I/O
2 x DisplayPort 1.4
1 x HDMI 2.1
1 x PS/2 Keyboard/Mouse Combo
1 x Q-Flash Plus Button
1 x RJ-45
4 x USB 2.0
2 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
Cooling Passive Heatsinks
Water Cooled No
Board Dimensions 244 x 244 mm
Brand
GIGABYTE
Weight
6.000000
Chipset Brand
AMD B850
Socket
AMD AM5
Form Factor
MICRO-ATX
